Integrate VS Code with MCP

Microsoft Visual Studio Code (VS Code) is a powerful and popular integrated development environment (IDE).

These instructions are for integrating dbt MCP and VS Code. Before starting, ensure you have:

• Completed the local MCP setup
• Installed VS Code with the latest updates
• (For local MCP with CLI) Configured your dbt project paths

Set up with local dbt MCP server

To get started, in VS Code:

1. Open the Settings menu and select the correct tab atop the page for your use case:

   • Workspace: Configures the server in the context of your workspace
   • User: Configures the server in the context of your user



   Note for WSL users: If you're using VS Code with Windows Subsystem for Linux (WSL), you'll need to configure WSL-specific settings. Run the Preferences: Open Remote Settings command from the Command Palette (F1) or select the Remote tab in the Settings editor. Local user settings are reused in WSL but can be overridden with WSL-specific settings. Configuring MCP servers in the local user settings will not work properly in a WSL environment.

2. Select Features --> Chat

3. Ensure that MCP is Enabled

mcp-vscode-settings

4. Open the command palette Control/Command + Shift + P, and select either:

   • MCP: Open Workspace Folder MCP Configuration — if you want to install the MCP server for this workspace
   • MCP: Open User Configuration — if you want to install the MCP server for the user

5. Add your server configuration (dbt) to the provided mcp.json file as one of the servers:

   tip

   You do not need to clone the dbt-mcp repository. Install uv and run uvx dbt-mcp (or use the config below); cloning is only for contributing.

    Local MCP with dbt platform OAuth

   Local MCP with OAuth is for users who want to use the dbt platform features.

   Choose your configuration based on your use case:

   dbt platform only

   This option is for users who only want dbt platform features (Discovery API, Semantic Layer, job management) without local CLI commands.

   When you use only the dbt platform, the CLI tools are automatically disabled. You can find the DBT_HOST field value in your dbt platform account information under Access URLs.

   {
     "mcpServers": {
       "dbt": {
         "command": "uvx",
         "args": ["dbt-mcp"],
         "env": {
           "DBT_HOST": "YOUR-ACCESS-URL"
         }
       }
     }
   }

   Note: Replace YOUR-ACCESS-URL with your Access URL hostname (for example, abc123.us1.dbt.com). Both abc123.us1.dbt.com and https://abc123.us1.dbt.com are accepted. This enables OAuth authentication without requiring local dbt installation.

   dbt platform + CLI

   This option is for users who want both dbt CLI commands and dbt platform features (Discovery API, Semantic Layer, job management).

   The DBT_PROJECT_DIR and DBT_PATH fields are required for CLI access. You can find the DBT_HOST field value in your dbt platform account information under Access URLs.

   {
     "mcpServers": {
       "dbt": {
         "command": "uvx",
         "args": ["dbt-mcp"],
         "env": {
           "DBT_HOST": "YOUR-ACCESS-URL",
           "DBT_PROJECT_DIR": "/path/to/project",
           "DBT_PATH": "/path/to/dbt/executable"
         }
       }
     }
   }

   Note: Replace YOUR-ACCESS-URL with your Access URL hostname (for example, abc123.us1.dbt.com). Both abc123.us1.dbt.com and https://abc123.us1.dbt.com are accepted. This enables OAuth authentication.

    Local MCP (CLI only)

   For users who only want to use dbt CLI commands with dbt Core or Fusion

   Finding your paths:

   • : Full path to the folder containing your dbt_project.yml file
     • macOS/Linux: Run pwd from your project folder.
     • Windows: Run cd from your project folder in Command Prompt.
   • DBT_PATH: Path to dbt executable
     • macOS/Linux: Run which dbt.
     • Windows: Run where dbt.
    Local MCP with .env

   For advanced users who need custom environment variables or service token authentication. Put your .env file in your dbt project root (same folder as dbt_project.yml) and use an absolute path with --env-file. Refer to the Environment variables reference for the complete list of available environment variables for the local MCP server.

   Using the env field (single-file configuration):

   IDs are integers, not URLs

   DBT_PROD_ENV_ID, DBT_DEV_ENV_ID, and DBT_USER_ID must be numeric IDs (for example, 54321), not full URLs copied from your browser. DBT_HOST accepts both cloud.getdbt.com and https://cloud.getdbt.com.

   Using an .env file (alternative - two-file configuration):

   {
     "servers": {
       "dbt": {
         "command": "uvx",
         "args": [
           "--env-file",
           "/absolute/path/to/your-dbt-project/.env",
           "dbt-mcp"
         ]
       }
     }
   }

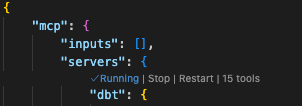

6. You can start, stop, and configure your MCP servers by:

   • Running the MCP: List Servers command from the Command Palette (Control/Command + Shift + P) and selecting the server.
   • Utilizing the keywords inline within the mcp.json file.

VS Code inline management

Now, you can access the dbt MCP server in VS Code through interfaces like GitHub Copilot.

Troubleshooting

This section contains troubleshooting steps for errors you might encounter when integrating VS Code with MCP.

 Cannot find `uvx` executable

If you see errors like Could not connect to MCP server dbt or spawn uvx ENOENT, VS Code may be unable to find the uvx executable.

To resolve, use the full path to uvx in your configuration:

1. Find the full path:

   • macOS/Linux: Run which uvx in Terminal.
   • Windows: Run where uvx in Command Prompt or PowerShell.

2. Update your mcp.json to use the full path:

   {
     "servers": {
       "dbt": {
         "command": "/full/path/to/uvx",
         "args": ["dbt-mcp"],
         "env": { ... }
       }
     }
   }

   Example on macOS with Homebrew: "command": "/opt/homebrew/bin/uvx"

 Configuration not working in WSL

If you're using VS Code with Windows Subsystem for Linux (WSL), make sure you've configured the MCP server in the WSL-specific settings, not the local user settings. Use the Remote tab in the Settings editor or run Preferences: Open Remote Settings from the Command Palette.

 Server not starting

Check the MCP server status:

1. Run MCP: List Servers from the Command Palette (Control/Command + Shift + P).
2. Look for any error messages next to the dbt server.
3. Click on the server to see detailed logs.

Common issues:

• Missing or incorrect paths for or DBT_PATH
• Invalid authentication tokens
• Missing required environment variables

Resources

• Microsoft VS Code MCP documentation
